Slave Cylinder

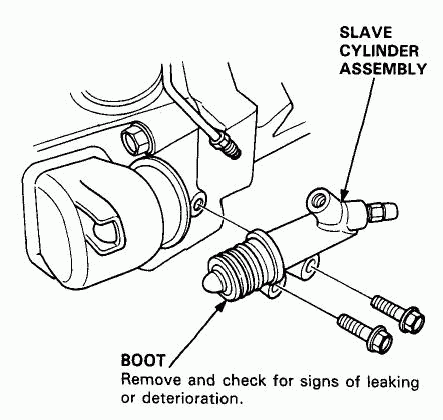

Removal

1. Disconnect the clutch pipe from the slave cylinder.
CAUTION:
•   Avoid spilling brake fluid on the painted surfaces,
as it may damage the finish.
•   Plug the end of the clutch pipe with a shop towel
to prevent brake fluid from coming out.
2. Remove the slave cylinder from the clutch housing.

Installation

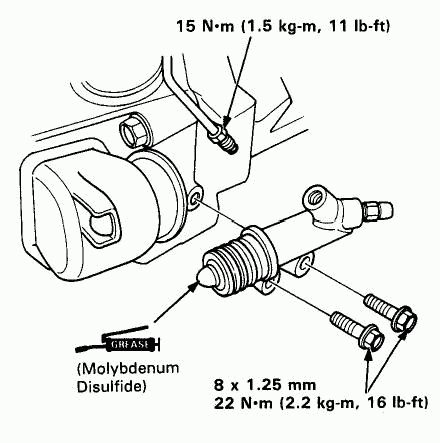

1. Install the slave cylinder assembly on the clutch housing.

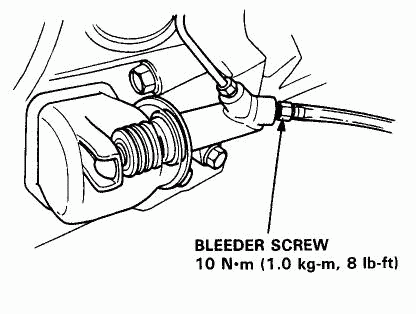

2. Bleed the clutch hydraulic system.

•   Attach a hose to the bleeder screw and suspend the hose in a container of brake fluid.
•   Make sure there is an adequate supply of fluid at the master cylinder, then slowly pump the clutch pedal until no more bubbles appear at the bleeder hose.
•   Refill the master cylinder fluid when done.
•   Use only DOT 3 or 4 brake fluid.
