Clutch Master Cylinder

Removal/Installation

CAUTION:
•   Avoid spilling brake fluid on painted surfaces, as it may damage the finish.
• Plug the end of the clutch pipe and reservoir hose with a shop towel to prevent fluid from flowing out of the clutch pipe and reservoir hose after disconnecting.

1. The brake fluid maybe sucked out through the top of the master cylinder reservoir (see section 19).

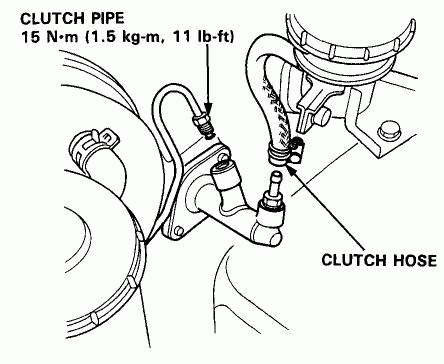

2. Disconnect the clutch pipe and clutch hose from the clutch master cylinder.

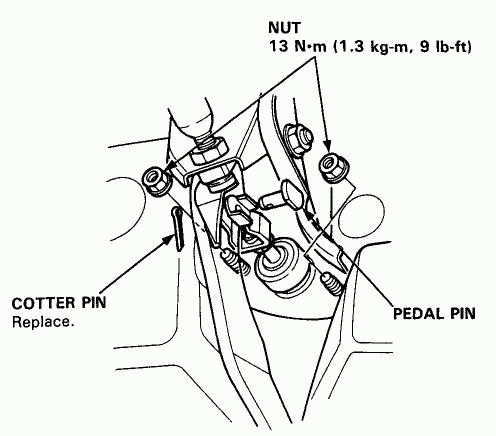

3. Pry out the cotter pin, and pull the pedal pin out of the yoke. Remove the nuts.

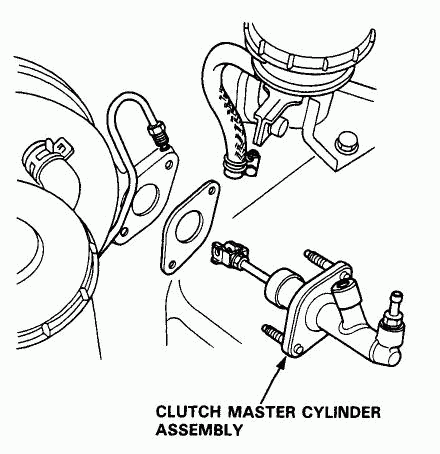

4. Remove the master clutch cylinder assembly.

5. Install the clutch master cylinder in the reverse order of removal.

NOTE: Bleed the clutch hydraulic system (see page 12-6).
